WAVEWATCHER (RELEASE 1.0) video card Settings and Configuration






AITECH INTERNATIONAL CORPORATION

WAVEWATCHER (RELEASE 1.0)

Category

Video/Sound

Video Types Supported

XVGA

Video Processor

Unidentified

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

VRAM

Maximum Onboard Memory

1MB (location unknown)

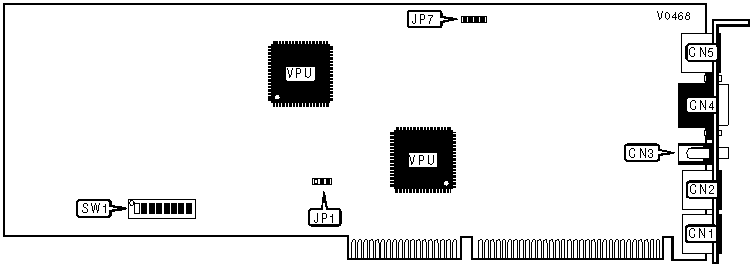

CONNECTIONS

Purpose

Location

Purpose

Location

DIN connector - audio/video 2/3 in

CN1

15-pin analog video port

CN4

DIN connector - audio/video 1 in

CN2

DIN connector - VGA loopback

CN5

Audio out jack

CN3

4-pin auxiliary audio connector

JP7

FACTORY CONFIGURED SETTINGS

Jumper

Setting

JP1

Pins 2 & 3 closed

SW1/1

On

SW1/2

On

SW1/3

On

SW1/4

On

SW1/5

On

SW1/6

On

SW1/7

On

SW1/8

On

Note: the factory strongly recommends not altering default settings for JP1 and SW1
