VIDEOBLENDER video card Settings and Configuration
AITECH INTERNATIONAL CORPORATION
VIDEOBLENDER
Category | Video/Sound |
Video Types Supported | XVGA |
Video Processor | Aitech International |
Highest Resolution Supported | 320 x 240 video capture |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 256KB (location unidentified) |

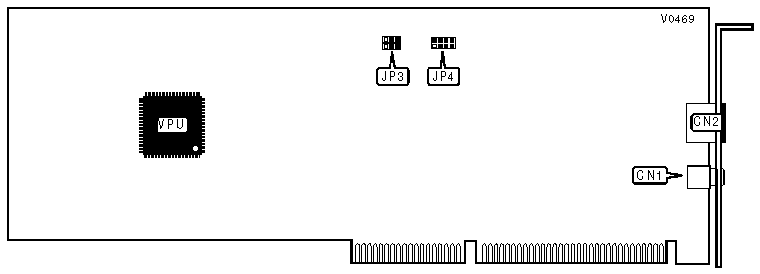

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
RCA jack | CN1 | 4-pin connector - S-VHS input | CN2 |
I/O ADDRESS SELECTION | |||
Address | JP3/A | JP3/B | |
| » | 340h - 341h | Pins 1 & 2 closed | Pins 1 & 2 closed |
348h - 349h | Pins 1 & 2 closed | Pins 2 & 3 closed | |
390h - 391h | Pins 2 & 3 closed | Pins 1 & 2 closed | |
398h - 399h | Pins 2 & 3 closed | Pins 2 & 3 closed | |
INTERRUPT SELECTION | ||
Setting | JP4 | |
| » | IRQ10 | Pins 5 & 6 closed |
IRQ3 | Pins 1 & 2 closed | |
IRQ5 | Pins 3 & 4 closed | |
IRQ12 | Pins 7 & 8 closed | |
