GRAPHICS ENGINE video card Settings and Configuration






ACTIX SYSTEMS, INC.

GRAPHICS ENGINE

Category

Video

Video Types Supported

XVGA

Video Processor

S3 86C928

Highest Resolution Supported

1280 x 1024

Data Bus Type

32-bit VESA local bus

Memory Type

DRAM

Maximum Onboard Memory

2048KB

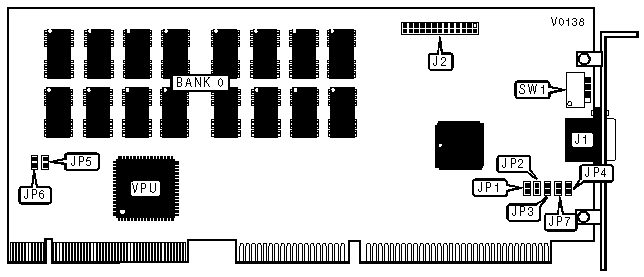

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

J1

VGA feature connector

J2

INTERRUPT CONFIGURATION

IRQ 2/9

JP4

Disabled

Open



Enabled

Closed

MONITOR TYPE SELECTION

Type

SW1/1

SW1/2

VGA, Super VGA

Off

Off

Multi-sync 48KHz

Off

On

Multi-sync 64KHz

On

Off

Multi-sync 78KHz

On

On

FACTORY CONFIGURED - DO NOT ALTER

Jumper/Switch

Position

JP1

Open

JP2

Open

JP3

Open

JP5

Open

JP6

Open

JP7

Open

SW1/3

Off

SW1/4

On
