GRAPHICS ENGINE ULTRA video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	S3 86C928
Highest Resolution Supported	1280 x 1024
Data Bus Type	16-bit ISA
Memory Type	VRAM
Maximum Onboard Memory	2MB

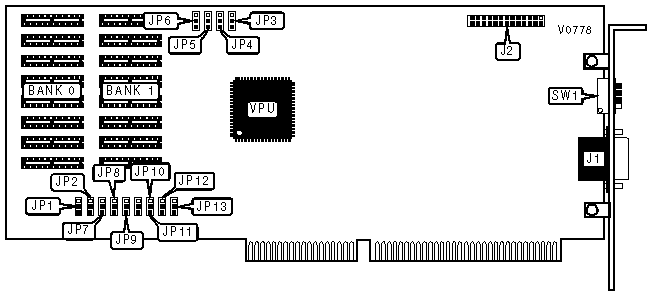

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	J1	VESA Feature connector	J2

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP3	Pins 2 & 3 closed
JP4	Pins 2 & 3 closed

INTERRUPT SELECTION
IRQ		JP7	JP8	JP9	JP10
»	Disabled	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	2/9	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	3	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
	5	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	15	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
Note: An IRQ channel must only be selected when using a CGA or EGA monitor.

MONITOR TYPE SELECT
Horizontal Retrace @ 1024x768	Vertical Retrace @ 1024x768	SW1/1	SW1/2
31.5KHz - 35.5KHz	43.5Hz (Interlaced)	Off	Off
30KHz - 38KHz	43.5Hz (Interlaced)	Off	On
30KHz - 48KHz	60Hz	On	Off
30KHz - 57KHz	72Hz	On	On

WAIT STATE CONFIGURATION
Wait States		SW1/3
»	>0 wait states	Off
	0 wait states	On

BIOS WIDTH SELECTION
BIOS		SW1/4
»	8-bit	On
	16-bit	Off

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1	JP13
1MB	(8) 256K x 4	NONE	Pins 1 & 2 closed
2MB	(8) 256K x 4	(8) 256K x 4	Pins 2 & 3 closed

ENGINE SPEED SELECTION
Mode	JP5	JP6
Fast	Pins 1 & 2 closed	Pins 2 & 3 closed
Slow	Pins 2 & 3 closed	Pins 1 & 2 closed

CLOCK CHIP SELECTION

Jumpers JP1, JP2, JP11, and JP12 are factory configured for the clock chip installed. They should not be changed.
