GRAPHICS ENGINE DISPLAY ACCELERATOR video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	1024 x 768
Maximum Video Memory	1MB VRAM
Data Bus	16-bit ISA
Video Types Supported	XVGA

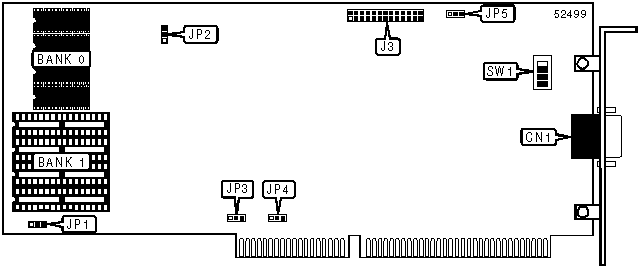

CONNECTIONS
Function	Label
15-pin video analog port	CN1
Feature connector	J3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	512KB VRAM installed	JP1	Pins 1 & 2 closed
	1MB VRAM installed	JP1	Pins 2 & 3 closed
»	Engine speed 70Mhz	JP2	Pins 2 & 3 closed
	Engine Speed 55Mhz	JP2	Pins 1 & 2 closed
	IRQ9 enabled	JP3	Pins 1 & 2 closed
	IRQ9 disabled	JP3	Pins 2 & 3 closed
»	Factory configured - do not alter	JP4	Unidentified
	MIDI option enabled	JP5	Pins 1 & 2 closed
	Sense option enabled	JP5	Pins 2 & 3 closed
»	Zero wait states disabled	SW1/3	Off
	Zero Wait states enabled	SW1/3	On
»	8 bit Bios	SW1/4	On
	8 bit Bios	SW1/4	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(4) 128K x 8	None
1MB	(4) 128K x 8	(4) 128K x 8

DISPLAY CONFIGURATION
Display	Horizontal Frequency	Refresh at 1024x768	SW1/1	SW1/2
VGA, Super VGA	31.5, 35.5 KHz	43.5 Hz	Off	Off
Multi-Sync, 38 KHz	30-38 KHz	43.5 Hz	Off	On
Multi-Sync, 48 KHz	30-48 KHz	60 Hz	On	Off
Multi-Sync, 57 KHz	30-57 KHz	72 Hz	On	On
