PICASSO 64+ AVC video card Settings and Configuration

Card Type	Video card
Video Chip Set	IGS IGA 1682 Chip
Highest Resolution Supported	1024 x 768
Maximum Video Memory	2MB DRAM
Data Bus	32-bit PCI
Video Types Supported	XVGA

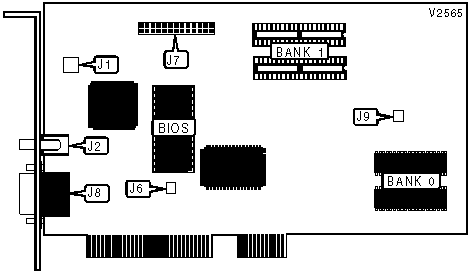

CONNECTIONS
Function	Label	Function	Label
Super VHS connector	J1	Feature connector	J7
NTCR/VCR connector	J2	15-pin analog video port	J8

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 256KB x 16	None
2MBB	(2) 256KB x 16	(2) 256KB x 16

MISCELLANEOUS TECHNICAL NOTE

Note: The configuration of J6 and J9 is unidentified.
