ETHER-T2 Network Card Settings and Configuration

Card Type	Ethernet Transceiver
NIC Type	Ethernet
Network Transfer Rate	10Mbps
Topology	Linear Bus
Wiring Type	AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Data Bus	External

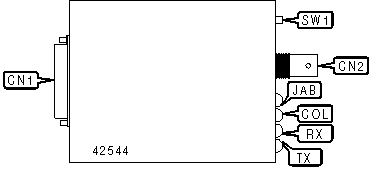

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	RG-58A/U BNC connector	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
SQE collision detection enabled	SW1	On
SQE collision detection disabled	SW1	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
JAB	Yellow	On	Abnormal frame rate detected
JAB	Yellow	Off	Frame rate is normal
COL	Yellow	On	Collision detected on network
COL	Yellow	Off	No collision detected on network
RX	Green	On	Data is being received
RX	Green	Off	Data is not being received
TX	Green	On	Data is being transmitted
TX	Green	Off	Data is not being transmitted
