ETHER-TF Network Card Settings and Configuration

Card Type	Ethernet Transceiver
NIC Type	Ethernet
Network Transfer Rate	10Mbps
Topology	Linear Bus
Wiring Type	AUI transceiver via DB-15 port Fiber optic cable
Data Bus	External

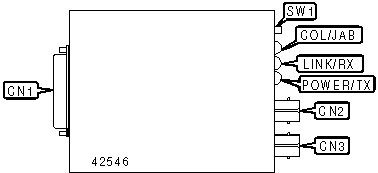

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	Fiber optic connector (ST) - Transmit	CN3
Fiber optic connector (ST) - Receive	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
SQE collision detection enabled	SW1	On
SQE collision detection disabled	SW1	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
COL/JAB	Yellow	On	Collision detected on network /Abnormal frame rate detected
COL/JAB	Yellow	Off	No collision detected on network /Frame rate is normal
LINK/RX	Green	On	Data link detected
LINK/RX	Green	Blinking	Data is being received
LINK/RX	Green	Off	Data link not detected/Data is not being received
POWER/TX	Green	On	Power on
POWER/TX	Green	Blinking	Data is being transmitted
POWER/TX	Green	Off	Power off/Data is not being transmitted
