TE-32E Network Card Settings and Configuration

NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	32-bit EISA
Topology:	Linear bus Star
Wiring Type	AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial Shielded/Unshielded twisted pair
Boot ROM	Available

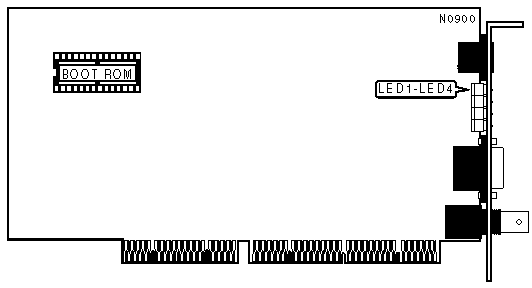

DIAGNOSTIC LEDS
LED	Status	Condition
LED1	On	Power on
LED1	Blinking	Data is being transmitted
LED2	On	Network connected successfully (UTP connection only)
LED2	Blinking	Data is being received
LED3	On	Network is not connected (RG-58A/U 50ohm coaxial connection only)
LED3	Blinking	Collision detected
LED4	Blinking	Transmission interrupted due to packet longer than allowable length (jabber)
