TE-100/PCI E Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Boot ROM	Not available
Network Transfer Rate	10/100Mbps (20/200Mbps full duplex)
Topology	Star
Wiring Type	Shielded twisted pair Unshielded twisted pair
Data Bus	32-bit PCI

CONNECTIONS
Function	Label
RJ-45 UTP/STP connector	CN1

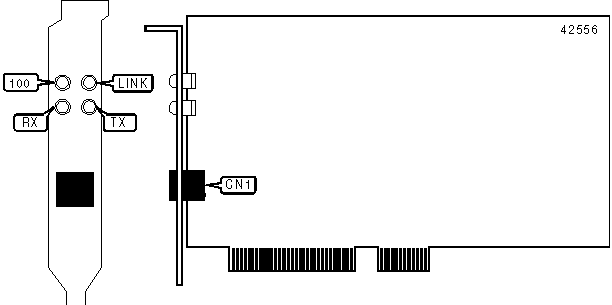

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LINK	Green	Blinking	UTP/STP link is good
LINK	Green	Off	UTP/STP link is broken
RX	Red	On	Data is being received
RX	Red	Off	Data is not being received
TX	Red	On	Data is being transmitted
TX	Red	Off	Data is not being transmitted
100	Green	On	100Mbps link detected
100	Green	Off	100Mbps link not detected
