ETHER-16T Network Card Settings and Configuration
TRENDWARE INTERNATIONAL, INC.
ETHER-16T
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Available |

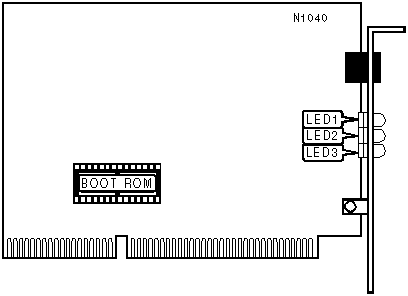

DIAGNOSTIC LED(S) | ||
LED | Status | Condition |
LED1 | On | Power on |
LED1 | Off | Power off |
LED1 | Blinking | Data is transmitting |
LED2 | On | Network connection is good |
LED2 | Off | Network connection is broken |
LED2 | Blinking | Data is being received |
LED3 | On | Collision detected on network |
LED3 | Off | No collision detected on network |
