FDO455 Network Card Settings and Configuration

SVEC COMPUTER CORPORATION

FDO455

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
PCI
Topology
Linear Bus/Star
Wiring Type
Unshielded twisted pair
AUI Transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM
Not available

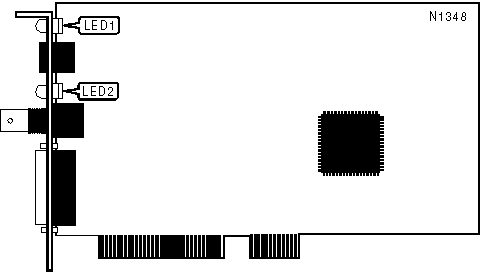

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
On
10Base-T network connection is good
LED1
Green
Off
10Base-T network connection is broken or not being used
LED2
Green
On
Data is being transmitted/received
LED2
Green
Off
Data is not being transmitted/received
