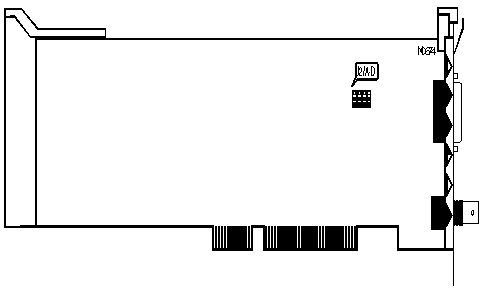

FD950 Network Card Settings and Configuration

NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	16-bit ISA
Topology:	Star
Wiring Type	AUI transceiver via DB-15 port
Boot ROM	Not available

I/O ADDRESS
I/O Address		JP1/Jumper A	JP1/Jumper B
»	280h	Closed	Closed
	2C0h	Closed	Open
	300h	Open	Closed
	340h	Open	Open

INTERRUPT REQUEST
IRQ		J2/Jumper A	J2/Jumper B	J2/Jumper C	J2/Jumper D
»	Disabled	Open	Open	Open	Open
	IRQ3	Closed	Open	Open	Open
	IRQ5	Open	Closed	Open	Open
	IRQ12	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Closed

CONNECTORS
Purpose	Location
Expansion card daisy-chain connector	CN1
Expansion card daisy-chain connector	CN2
AUI connector - internal	CN3

DIAGNOSTIC LED
Status	Condition
On	Power on
Off	Power off
Blinking	Data is being transmitted or received
