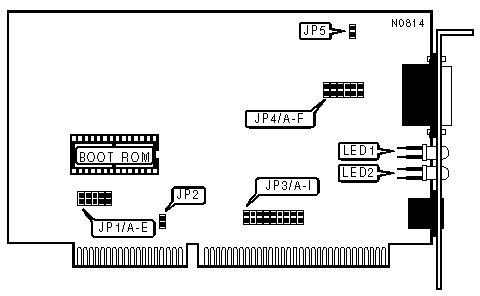

FD0490P Network Card Settings and Configuration

NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	16-bit ISA
Topology:	Star
Wiring Type	AUI transceiver via DB-15 port Shielded/Unshielded twisted pair
Boot ROM	Available

I/O ADDRESS
Address		JP1/Jumper A	JP1/Jumper B
»	300h	Closed	Closed
	320h	Closed	Open
	340h	Open	Closed
	360h	Open	Open

BOOT ROM ADDRESS
Address		JP1/Jumper C	JP1/Jumper D	JP1/Jumper E
»	C800h	Closed	Open	Closed
	C000h	Closed	Closed	Closed
	C400h	Open	Closed	Closed
	CC00h	Open	Open	Closed
	D000h	Closed	Closed	Open
	D400h	Open	Closed	Open
	D800h	Closed	Open	Open
	DC00h	Open	Open	Open

TIMING
Setting		JP2
»	Standard	Closed
	Non-standard	Open
Note:If compatibility problems are encountered, try opening JP2.

INTERRUPT REQUEST - JP3
IRQ	A	B	C	D	E	F	G	H	I
IRQ2	Closed	Open	Open	Open	Open	Open	Open	Open	Open
IRQ3	Open	Closed	Open	Open	Open	Open	Open	Open	Open
IRQ4	Open	Open	Closed	Open	Open	Open	Open	Open	Open
IRQ5	Open	Open	Open	Closed	Open	Open	Open	Open	Open
IRQ6	Open	Open	Open	Open	Closed	Open	Open	Open	Open
IRQ7	Open	Open	Open	Open	Open	Closed	Open	Open	Open
IRQ10	Open	Open	Open	Open	Open	Open	Closed	Open	Open
IRQ11	Open	Open	Open	Open	Open	Open	Open	Closed	Open
IRQ12	Open	Open	Open	Open	Open	Open	Open	Open	Closed

CABLE TYPE
Type	JP4
AUI transceiver via DB-15 port	All jumpers open
Shielded/Unshielded twisted pair	All jumpers closed

CONNECTORS
Purpose	Location
External LED connector	JP5

DIAGNOSTIC LED
LED	Status	Condition
LED1	On	Data is being received
LED2	On	Data is being transmitted
JP5	On	Power on
JP5	Blinking	Data is being transmitted or received
JP5	Off	Connection is broken/power off
