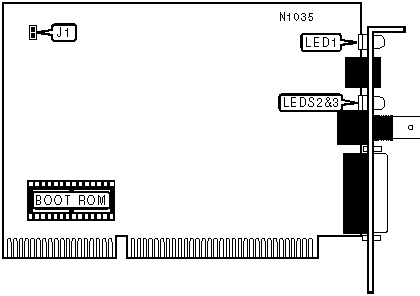

FD0490I Network Card Settings and Configuration







SVEC COMPUTER CORPORATION

FD0490I

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Star & Linear Bus

Wiring Type

Unshielded twisted pair

AUI Transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Boot ROM

Available

CONNECTIONS

Purpose

Location

External LED

J1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On

Link status OK

LED1

Yellow

Off

Link status broken

LED2

Yellow

On

IRQ conflict occurring

LED2

Yellow

Off

IRQ conflict not occurring

LED3

Green

On

Network activity detected

LED3

Green

Off

Network activity not detected
