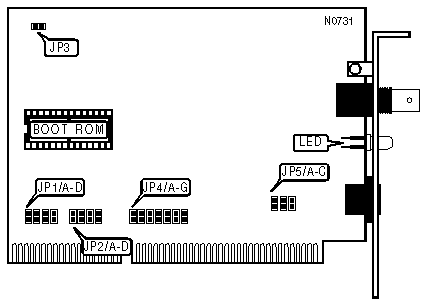

FD0421A Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus Star
Wiring Type	RG-58/U 50ohm coaxial Unshielded twisted pair
Boot ROM	Available

BOOT ROM
Setting		JP5/A
»	Disabled	Open
	Enabled	Closed

BASE MEMORY ADDRESS SELECT
ROM Address		I/O Address	JP5/B	JP5/C
»	C800h	300h	Closed	Closed
	CC00h	320h	Closed	Open
	D000h	340h	Open	Closed
	D400h	360h	Open	Open

DMA CONFIGURATION
DMA		JP1/A	JP1/B	JP1/C	JP1/D	JP2/A	JP2/B	JP2/C	JP2/D
»	5	Open	Closed	Open	Open	Open	Closed	Open	Open
	3	Closed	Open	Open	Open	Closed	Open	Open	Open
	6	Open	Open	Closed	Open	Open	Open	Closed	Open
	7	Open	Open	Open	Closed	Open	Open	Open	Closed

INTERRUPT SELECT
IRQ		JP4/A	JP4/B	JP4/C	JP4/D	JP4/E	JP4/F	JP4/G
»	IRQ3	Open	Closed	Open	Open	Open	Open	Open
	IRQ2	Closed	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Open	Closed	Open	Open	Open	Open
	IRQ5	Open	Open	Open	Closed	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Closed	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Closed

CONNECTIONS
Purpose	Location
External LED connector	JP3

DIAGNOSTIC LED
Color	Status	Condition
Green	On	Network connection is good
Green	Blinking	Data is being received
Green	Off	Network connection is broken
