10/100 MBPS FAST ETHERNET Network Card Settings and Configuration







SVEC COMPUTER CORPORATION

10/100 MBPS FAST ETHERNET

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Unidentified

Network Transfer Rate

10/100Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Data Bus

32-bit PCI

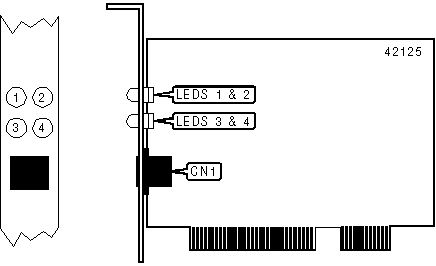

CONNECTIONS

Function

Label

RJ-45 connector

CN1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

100 Base-Tx network connection is good

LED1

Unidentified

Off

100 Base-Tx network connection is broken

LED2

Unidentified

On

10 Base-T network connection is good

LED2

Unidentified

Off

10 Base-T network connection is broken

LED3

Unidentified

Blinking

Data is being transmitted/received

LED3

Unidentified

Off

Data is not being transmitted/received

LED4

Unidentified

On

UTP link is good

LED4

Unidentified

Off

UTP link is broken
