EP-201FX-C Network Card Settings and Configuration
SURECOM TECHNOLOGY CORPORATION
EP-201FX-C
Card Type | Ethernet Transceiver |
NIC Type | Ethernet |
Maximum Onboard Memory | Unidentified |
Boot ROM | Not available |
Network Transfer Rate | 100Mbps |
Topology | Star |
Wiring Type | Fiber optic |
Data Bus | External |
CONNECTIONS | |||

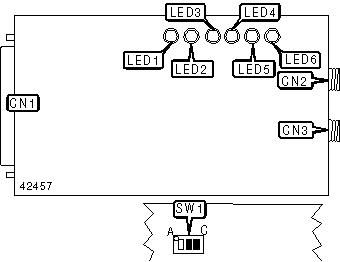

Function | Label | Function | Label |
MII connector | CN1 | SC receive connector | CN3 |
SC transmit connector | CN2 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Repeater mode enabled | SW1/A | On |
DTE mode enabled | SW1/A | Off | |
| » | Half duplex mode enabled | SW1/B | Off |
Full duplex mode enabled | SW1/B | On | |
| » | Isolation mode disabled | SW1/C | Off |
Isolation mode enabled | SW1/C | On | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Full duplex mode enabled |
LED1 | Green | Off | Half duplex mode enabled |
LED2 | Red | On | Collision detected on network |
LED2 | Red | Off | No collision detected on network |
LED3 | Green | On | Data is being received |
LED3 | Green | Off | Data is not being received |
LED4 | Green | On | Data is being transmitted |
LED4 | Green | Off | Data is not being transmitted |
LED5 | Green | On | Network connection is good |
LED5 | Green | Off | Network connection is broken |
LED6 | Green | On | Transceiver is receiving power |
LED6 | Green | Off | Transceiver is not receiving power |
