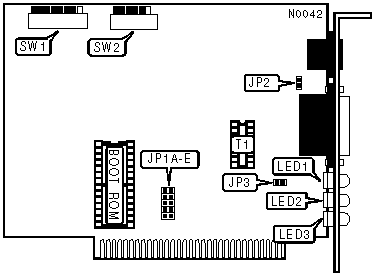

ETHERNET 3008TP Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear Bus Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port
Boot ROM	Available

I/O BASE ADDRESS
Address		SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7
»	300h	On	On	On	Off	Off	On	On
	200h	On	On	On	On	Off	On	On
	220h	Off	On	On	On	Off	On	On
	240h	On	Off	On	On	Off	On	On
	260h	Off	Off	On	On	Off	On	On
	280h	On	On	Off	On	Off	On	On
	2A0h	Off	On	Off	On	Off	On	On
	2C0h	On	Off	Off	On	Off	On	On
	2E0h	Off	Off	Off	On	Off	On	On
	320h	Off	On	On	Off	Off	On	On
	340h	On	Off	On	Off	Off	On	On
	360h	Off	Off	On	Off	Off	On	On
	380h	On	On	Off	Off	Off	On	On
	3A0h	Off	On	Off	Off	Off	On	On
	3C0h	On	Off	Off	Off	Off	On	On
	3E0h	Off	Off	Off	Off	Off	On	On

BOOT ROM
Setting		SW1/8
»	Disabled	Off
	Enabled	On

BASE MEMORY ADDRESS
Address		SW2/1	SW2/2	SW2/3	SW2/4	SW2/5	SW2/6
»	D0000h	On	On	Off	On	Off	Off
	C0000h	On	On	On	On	Off	Off
	C4000h	Off	On	On	On	Off	Off
	C8000h	On	Off	On	On	Off	Off
	CC000h	Off	Off	On	On	Off	Off
	D4000h	Off	On	Off	On	Off	Off
	D8000h	On	Off	Off	On	Off	Off
	DC000h	Off	Off	Off	On	Off	Off
	E0000h	On	On	On	Off	Off	Off
	E4000h	Off	On	On	Off	Off	Off
	E8000h	On	Off	On	Off	Off	Off
	EC000h	Off	Off	On	Off	Off	Off

INTERRUPT REQUEST
IRQ		JP1A	JP1B	JP1C	JP1D	JP1E
»	3	Closed	Open	Open	Open	Open
	2	Open	Open	Open	Open	Closed
	4	Open	Closed	Open	Open	Open
	5	Open	Open	Closed	Open	Open
	7	Open	Open	Open	Closed	Open

CABLE TYPE
Type		JP2	JP3	Pulse Transformer T1
»	Unshielded twisted pair	Open	Open	Installed
	AUI transceiver via DB-15 port	Open	Closed	Not installed

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Twisted pair network connection is good
LED1	Off	Twisted pair network connection is broken
LED2	On	Data is being received
LED2	Off	Data is not being received
LED3	On	Data is being transmitted
LED3	Off	Data is not being transmitted
