ARCNET PC500 Network Card Settings and Configuration
STANDARD MICROSYSTEMS CORPORATION

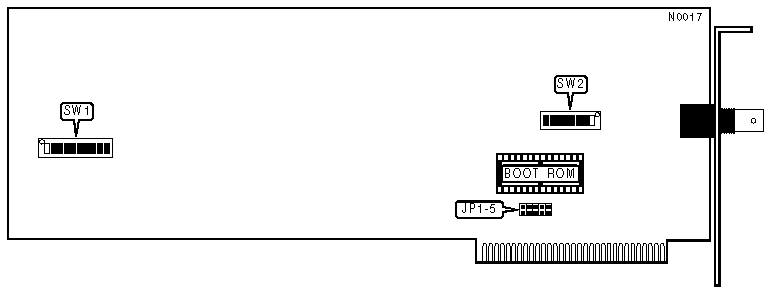

ARCNET PC500
NIC Type | ARCnet |
Transfer Rate | 2.5Mbps |
Data Bus | 16-bit ISA |
Topology | Star Linear Bus |
Wiring Type | RG-62A/U 93ohm coaxial |
Boot ROM | Not available |
NODE ADDRESS | ||||||||
Node | SW3/1 | SW3/2 | SW3/3 | SW3/4 | SW3/5 | SW3/6 | SW3/7 | SW3/8 |
0 | - | - | - | - | - | - | - | - |
1 | Off | On | On | On | On | On | On | On |
2 | On | Off | On | On | On | On | On | On |
3 | Off | Off | On | On | On | On | On | On |
4 | On | On | Off | On | On | On | On | On |
251 | Off | Off | On | Off | Off | Off | Off | Off |
252 | On | On | Off | Off | Off | Off | Off | Off |
253 | Off | On | Off | Off | Off | Off | Off | Off |
254 | On | Off | Off | Off | Off | Off | Off | Off |
255 | Off | Off | Off | Off | Off | Off | Off | Off |
Note: Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, Off=1) | ||||||||
RESPONSE & RECONFIGURATION TIMEOUTS | |||||
Response Time | Idle Time | Reconfig. Time | JP2A | JP2B | |
» | 78µs | 86µs | 840ms | Closed | Closed |
| 285µs | 316µs | 1680ms | Closed | Open |
| 563µs | 624µs | 1680ms | Open | Closed |
| 1190µs | 1237µs | 1680ms | Open | Open |
TOPOLOGY CONFIGURATION | |
Topology | JP6 |
Star | Closed |
Linear Bus | Open |
I/O BASE ADDRESS | |||||||
Address | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 | |
» | 300h | On | On | On | On | Off | Off |
| 200h | On | On | On | On | On | Off |
| 210h | Off | On | On | On | On | Off |
| 220h | On | Off | On | On | On | Off |
| 230h | Off | Off | On | On | On | Off |
| 240h | On | On | Off | On | On | Off |
| 250h | Off | On | Off | On | On | Off |
| 260h | On | Off | Off | On | On | Off |
| 270h | Off | Off | Off | On | On | Off |
| 280h | On | On | On | Off | On | Off |
| 290h | Off | On | On | Off | On | Off |
| 2A0h | On | Off | On | Off | On | Off |
| 2B0h | Off | Off | On | Off | On | Off |
| 2C0h | On | On | Off | Off | On | Off |
| 2D0h | Off | On | Off | Off | On | Off |
| 2E0h | On | Off | Off | Off | On | Off |
| 2F0h | Off | Off | Off | Off | On | Off |
| 310h | Off | On | On | On | Off | Off |
| 320h | On | Off | On | On | Off | Off |
| 330h | Off | Off | On | On | Off | Off |
| 340h | On | On | Off | On | Off | Off |
| 350h | Off | On | Off | On | Off | Off |
| 360h | On | Off | Off | On | Off | Off |
| 370h | Off | Off | Off | On | Off | Off |
| 380h | On | On | On | Off | Off | Off |
| 390h | Off | On | On | Off | Off | Off |
| 3A0h | On | Off | On | Off | Off | Off |
| 3B0h | Off | Off | On | Off | Off | Off |
| 3C0h | On | On | Off | Off | Off | Off |
| 3D0h | Off | On | Off | Off | Off | Off |
| 3E0h | On | Off | Off | Off | Off | Off |
| 3F0h | Off | Off | Off | Off | Off | Off |
INTERRUPT REQUEST | ||||
IRQ | SW1/7 | SW1/8 | SW1/9 | SW1/10 |
2/9 | Off | On | On | Off |
3 | Off | Off | On | On |
4 | On | On | Off | On |
5 | Off | On | Off | On |
7 | Off | Off | Off | On |
10 | On | Off | On | Off |
11 | Off | Off | On | Off |
12 | On | On | Off | Off |
FACTORY CONFIGURED SETTINGS | |
Switch | Setting |
SW2/1 | On |
SW2/2 | On |
SW2/3 | Off |
SW2/4 | On |
SW2/5 | On |
SW2/6 | On |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Red | On | Card is being accessed by host computer |
LED1 | Red | Off | Card is not being accessed by host computer |
LED2 | Green | On | Data is being transmitted/received |
LED2 | Green | Off | Data is not being transmitted/received |
LED2 | Green | Blinking | Network is reconfiguring |
