NV2029SC Network Card Settings and Configuration







RPTI INTERNATIONAL LTD.

NV2029SC

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Available

Network Transfer Rate

10Mbps

Topology

Linear Bus, Star

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

Data Bus

16-bit ISA

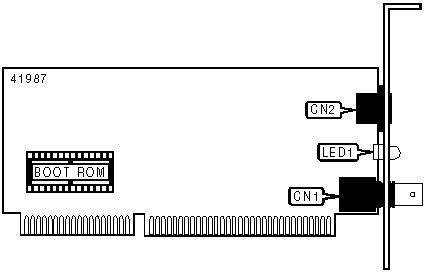

CONNECTIONS

Function

Label

Function

Label

RG-58A/U connector

CN1

UTP connector

CN2

DIAGNOSTIC LED(S)

Note: Function of LED is unidentified.
