PDE8023-32CT Network Card Settings and Configuration
PUREDATA
PDE8023-32CT
NIC Type | Ethernet |
Network Transfer Rate | 10Mbps |
Data Bus | 32-bit EISA |
Topology | Linear Bus, Star |
Wiring Type | Unshielded twisted pair RG-58A/U 50ohm coaxial |
Boot ROM | Available |

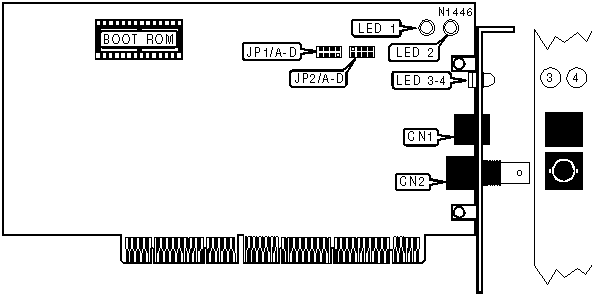

CONNECTIONS | |||
Function | Label | Function | Label |
RJ-45/10BASE-T connector | RG-58A/U 50ohm coaxial/10BASE2 connector | CN2 | |
WIRING TYPE SELECTION | ||||
Setting | JP2/A | JP2/B | JP2/C | JP2/D |
Software selectable | Closed | Open | Open | Open |
10BASE-T | Open | Closed | Open | Open |
10BASE5 | Open | Open | Closed | Open |
10BASE2 | Open | Open | Open | Closed |
CARD SELECTION | |||||
Setting | JP1/A | JP1/B | JP1/C | JP1/D | |
| » | 1 | Closed | Open | Open | Open |
2 | Open | Closed | Open | Open | |
3 | Open | Open | Closed | Open | |
4 | Open | Open | Open | Closed | |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED 1 | Red | On | Network collision detected |
LED 1 | Red | Off | Network collision not detected |
LED 2 | Green | On | Link integrity is good |
LED 2 | Green | Off | Link integrity is broken |
LED 3/4 | Green | On | Adapter receiving data |
LED 3/4 | Green | Off | Adapter not receiving data |
LED 3/4 | Red | On | Adapter communicating with host |
LED 3/4 | Red | Off | Adapter not communicating |
