PDE80212-32 PCI Network Card Settings and Configuration
PUREDATA
PDE80212-32 PCI
NIC Type | Ethernet |
Network Transfer Rate | 10/100Mbps |
Data Bus | 32-bit PCI |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Available (location unidentified) |

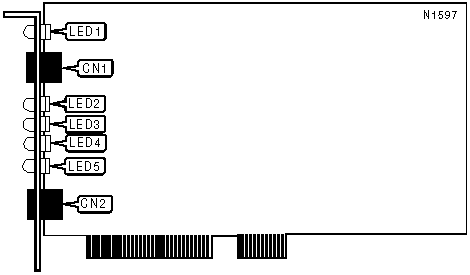

CONNECTIONS | |||
Function | Label | Function | Label |
Unshielded twisted pair port (100VG) | CN1 | Unshielded twisted pair port (10Base-T) | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Red | On | 100VG network connection is broken |
LED1 | Green | On | 100VG network connection is good |
LED1 | Red or Green | Off | 100VG port not selected |
LED2 | Red | On | Data is being transmitted |
LED2 | Red | Off | Data is not being transmitted |
LED3 | Green | On | Data is being received |
LED3 | Green | Off | Data is being received |
LED4 | Amber | On | Polarity is reversed |
LED4 | Amber | Off | Polarity is not reversed |
LED5 | Green | On | 10Base-T network connection is good |
LED5 | Green | Off | 10Base-T port not selected |
