RANGELAN2 7530 Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Token Ring
Boot ROM	Not available
Radio Data Rate	1.6Mbps
Network Transfer Rate	16Mbps/4Mbps
Topology	Ring
Wiring Type	Shielded twisted pair Unshielded twisted pair

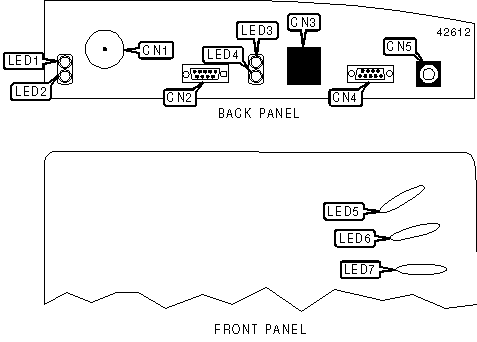

CONNECTIONS
Function	Label	Function	Label
Antenna connector	CN1	DB-9 STP connector	CN4
DB-9 serial connector	CN2	DC power connector	CN5
RJ-45 UTP connector	CN3

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Operating as a Master
LED1	Green	Off	Not operating as a Master
LED2	Unidentified	Off	Non-functioning LED - reserved for future use
LED3	Green	On	Operating at 4Mbps
LED3	Green	Off	Not operating at 4Mbps
LED4	Yellow	On	Operating at 16Mbps
LED4	Yellow	Off	Not operating at 16Mbps
LED5	Green	On	Operating in normal mode
LED5	Yellow	On	Power to hardware is on
LED5	Red	On	Problem with hardware
LED6	Yellow	Blinking	Data is being received wirelessly
LED6	Yellow	Off	Data is not being received wirelessly
LED7	Green	Blinking	Data is being received from Ethernet
LED7	Green	Off	Data is not being received from Ethernet
