RANGELAN2 (7920, 7921) Network Card Settings and Configuration
PROXIM, INC.
RANGELAN2 (7920, 7921)
Card Type | Network Interface Card |
NIC Type | Ethernet |
Boot ROM | Not available |
Radio Data Rate | 1.6Mbps |
Network Transfer Rate | 10Mbps |
Topology | Ad-hoc, Infrastructure |
Wiring Type | Unshielded twisted pair |

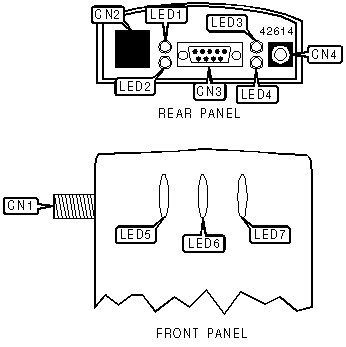

CONNECTIONS | |||
Function | Label | Function | Label |
Antenna connector | CN1 | RS-232 (DB-9) connector | CN3 |
RJ-45 UTP connector | CN2 | DC power connector | CN4 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Network connection is good |
LED1 | Green | Off | Network connection is not good |
LED2 | Yellow | On | Station type and domain set by software |
LED2 | Yellow | Off | Station type and domain set by switches |
LED3 | Green | On | Operating as a master |
LED3 | Green | Off | Not operating as a master |
LED4 | Yellow | On | Operating as a station |
LED4 | Yellow | Off | Not operating as a station |
LED5 | Green | Blinking | Data is being received on Ethernet |
LED5 | Green | Off | Data is not being received on Ethernet |
LED6 | Yellow | Blinking | Data is being received wirelessly |
LED6 | Yellow | Off | Data is not being received wirelessly |
LED7 | Green | On | Operating in normal mode |
LED7 | Yellow | On | Initializing hardware |
LED7 | Red | On | Problem with hardware |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Station mode | SW2 | Station |
Master mode | SW2 | Master | |
DOMAIN SELECTION | |||
Setting | Label | Position | |
| » | Use domain 0 | SW1 | 0 |
Use domain 1 | SW1 | 1 | |
Use domain 2 | SW1 | 2 | |
Use domain 3 | SW1 | 3 | |
Use domain 4 | SW1 | 4 | |
Use domain 5 | SW1 | 5 | |
Use domain 6 | SW1 | 6 | |
Use domain 7 | SW1 | 7 | |
Use domain 8 | SW1 | 8 | |
Use domain 9 | SW1 | 9 | |
