UTPTRA TOKEN RING Network Card Settings and Configuration

NETWORTH, INC.

UTPTRA TOKEN RING

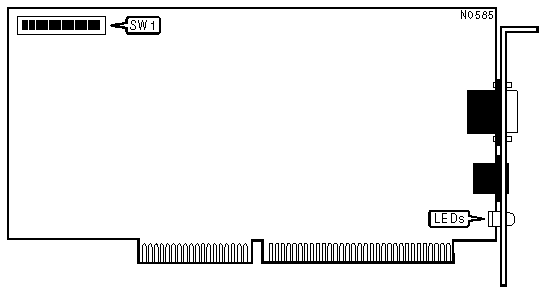

NIC Type
Token Ring
Transfer Rate
4/16Mbps
Data Bus
16-bit ISA
Topology
Token-Ring
Wiring Type
Shielded twisted pair via DB-9
Boot ROM
Available (in firmware)

I/O BASE ADDRESS
Address
SW1/1
»
A20h
On

A24h
Off

NETWORK SPEED
Speed
SW1/2

4Mbps
On
»
16Mbps
Off
Note:All cards on a segment must have this option set the same.

SHARED RAM CONFIGURATION
Size
SW1/3
SW1/4

8KB
On
On
»
16KB
Off
On

32KB
On
Off

64KB
Off
Off
Note:This setting configures how much system memory the card will use.

INTERRUPT REQUEST
IRQ
SW1/5
SW1/6
»
2/9
On
On

3
Off
On

6
On
Off

7
Off
Off

BOOT ROM ADDRESS
Address
SW1/7
SW1/8
SW1/9
SW1/10
SW1/11
SW1/12

C0000-C1FFFh
Off
Off
Off
Off
Off
On

C2000-C3FFFh
On
Off
Off
Off
Off
On

C4000-C5FFFh
Off
On
Off
Off
Off
On

C6000-C7FFFh
On
On
Off
Off
Off
On

C8000-C9FFFh
Off
Off
On
Off
Off
On

CA000-CBFFFh
On
Off
On
Off
Off
On
»
CC000-CDFFFh
Off
On
On
Off
Off
On

CE000-CFFFFh
On
On
On
Off
Off
On

D0000-D1FFFh
Off
Off
Off
On
Off
On

D2000-D3FFFh
On
Off
Off
On
Off
On

D4000-D5FFFh
Off
On
Off
On
Off
On

D6000-D7FFFh
On
On
Off
On
Off
On

D8000-D9FFFh
Off
Off
On
On
Off
On

DA000-DBFFFh
On
Off
On
On
Off
On
»
DC000-DDFFFh
Off
On
On
On
Off
On

DE000-DFFFFh
On
On
On
On
Off
On

E0000-E1FFFh
Off
Off
Off
Off
On
On

E2000-E3FFFh
On
Off
Off
Off
On
On

E4000-E5FFFh
Off
On
Off
On
Off
On

E6000-E7FFFh
On
On
Off
Off
On
On

E8000-E9FFFh
Off
Off
On
Off
On
On

EA000-EBFFFh
On
Off
On
Off
On
On

EC000-EDFFFh
Off
On
On
Off
On
On

EE000-EFFFFh
On
On
On
Off
On
On

F0000-F1FFFh
Off
Off
Off
On
On
On

F2000-F3FFFh
On
Off
Off
On
On
On

F4000-F5FFFh
Off
On
Off
On
On
On

F6000-F7FFFh
On
Off
On
On
On
On

F8000-F9FFFh
Off
Off
On
On
On
On

FA000-FBFFFh
On
Off
On
On
On
On

FC000-FDFFFh
Off
On
On
On
On
On

FE000-FFFFFh
On
On
On
On
On
On
Note:CC000h or DC000h are the recommended default settings.

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Green
Off
Network speed 4Mbps
LED1
Green
On
Network speed 16Mbps
LED2
Yellow
Off
Data is not being transmitted/received
LED2
Yellow
On
Data is being transmitted/received
