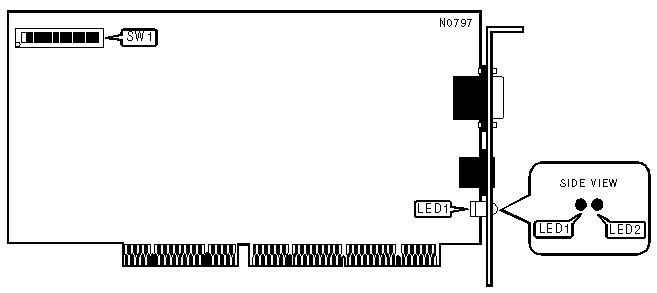

UBUTPTRA TOKEN RING Network Card Settings and Configuration

NETWORTH, INC.

UBUTPTRA TOKEN RING

NIC Type:
Token-Ring
Transfer Rate:
4/16Mbps
Data Bus:
32-bit EISA, 16-bit ISA, or 8-bit ISA
Topology:
Ring
Wiring Type
Shielded twisted pair
Unshielded twisted pair
Boot ROM
Available

I/O ADDRESS
Address
SW1/1
»
A20h
Off

A24h
On

DATA TRANSFER RATE
RATE
SW1/2
»
16Mbps
On

4Mbps
Off

SHARED RAM SIZE
Setting
SW1/3
SW1/4
»
16KB
On
Off

8KB
Off
Off

32KB
Off
On

64KB
On
On

INTERRUPT SELECT
IRQ
SW1/5
SW1/6
»
IRQ9 (IRQ2 for 8-bit ISA)
Off
Off

IRQ3
On
Off

IRQ6
Off
On

IRQ7
On
On

BOOT ROM ADDRESS
Address
SW1/7
SW1/8
SW1/9
SW1/10
SW1/11
SW1/12
»
CC000h
Off
On
On
Off
Off
On

C0000h
Off
Off
Off
Off
Off
On

C2000h
On
Off
Off
Off
Off
On

C4000h
Off
On
Off
Off
Off
On

C6000h
On
On
Off
Off
Off
On

C8000h
Off
Off
On
Off
Off
On

CA000h
On
Off
On
Off
Off
On

CE000h
On
On
On
Off
Off
On

D0000h
Off
Off
Off
On
Off
On

D2000h
On
Off
Off
On
Off
On

D4000h
Off
On
Off
On
Off
On

D6000h
On
On
Off
On
Off
On

D8000h
Off
Off
On
On
Off
On

DA000h
On
Off
On
On
Off
On

DC000h
Off
On
On
On
Off
On

DE000h
On
On
On
On
Off
On

DIAGNOSTIC LEDS
LED
Color
Status
Condition
LED1
Green
On
16Mbps data rate enabled
LED1
Green
Off
4Mbps data rate enabled
LED2
Yellow
On
Data is being transmitted or received
LED2
Yellow
Off
Data is not being transmitted or received
