COLLAGE 155 EISA (VER. 1) Network Card Settings and Configuration







MADGE NETWORKS, LTD.

COLLAGE 155 EISA (VER. 1)

Card Type

Network Interface Card

NIC Type

ATM

Maximum Onboard Memory

256KB

Boot ROM

Unidentified

Network Transfer Rate

155Mbps

Topology

Star

Wiring Type

Fiber optic cable

Data Bus

32-bit EISA

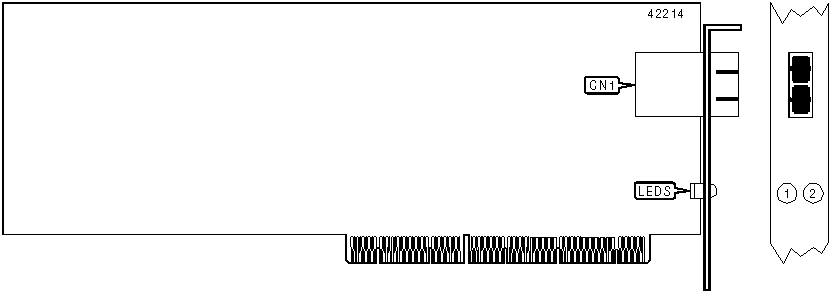

CONNECTIONS

Function

Label

Fiber optic connector (SC)

CN1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On

Network connection is good

LED1

Yellow

Blinking

Data is being transmitted/received

LED1

Yellow

Off

Diagnostic failure

LED2

Green

On

Fiber optic link is good

LED2

Green

Off

Fiber optic link is broken
