E450 (VER. 2) Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Star, Linear Bus
Wiring Type	Shielded twisted pair Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Data Bus	32-bit PCI

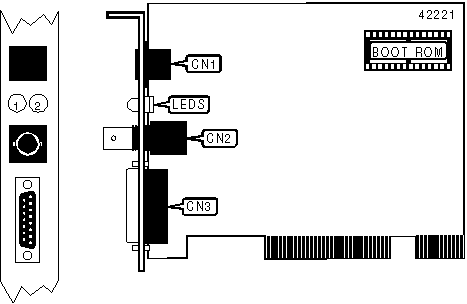

CONNECTIONS
Function	Label	Function	Label
UTP/STP via RJ-45 connector	CN1	AUI transceiver via DB-15 port	CN3
RG-58A/U connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	UTP/STP link is good
LED1	Green	Off	UTP/STP link is broken
LED2	Green	Blinking	Data is being transmitted/received
LED2	Green	Off	Data is not being transmitted/received
