LCS-8636 Network Card Settings and Configuration

LONGSHINE MICROSYSTEM, INC.

LCS-8636

NIC Type
Token Ring
Transfer Rate
4/16Mbps
Data Bus
16-bit ISA
Topology
Ring
Wiring Type
AUI transceiver via DB-15 port
Unshielded twisted pair
Boot ROM
Not available

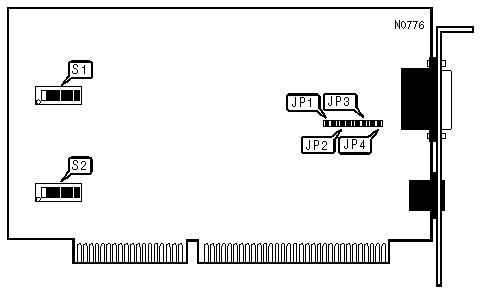

BASE MEMORY ADDRESS SELECT
Address
S1/1
S1/2
S1/3
S1/4
S1/5
S1/6
»
CC00h
On
Off
Off
On
On
Off

B000h
Off
On
On
Off
Off
Off

B200h
Off
On
On
Off
Off
On

B400h
Off
On
On
Off
On
Off

B600h
Off
On
On
Off
On
On

B800h
Off
On
On
On
Off
Off

BA00h
Off
On
On
On
Off
On

BC00h
Off
On
On
On
On
Off

BE00h
Off
On
On
On
On
On

C000h
On
Off
Off
Off
Off
Off

C200h
On
Off
Off
Off
Off
On

C400h
On
Off
Off
Off
On
Off

C600h
On
Off
Off
Off
On
On

C800h
On
Off
Off
On
Off
Off

BASE MEMORY ADDRESS SELECT(CONTINUED)
Address
S1/1
S1/2
S1/3
S1/4
S1/5
S1/6
CA00h
On
Off
Off
On
Off
On
CE00h
Off
On
Off
On
On
On
D000h
On
Off
On
Off
Off
Off
D200h
On
Off
On
Off
Off
On
D400h
On
Off
On
Off
On
Off
D600h
On
Off
On
Off
On
On
D800h
On
Off
On
On
Off
Off
DA00h
On
Off
On
On
Off
On
DC00h
On
Off
On
On
On
Off
DE00h
On
Off
On
On
On
On
E000h
On
On
Off
Off
Off
Off
E200h
On
On
Off
Off
Off
On
E400h
On
On
Off
Off
On
Off
E600h
On
On
Off
Off
On
On
E800h
On
On
Off
On
Off
Off
EA00h
On
On
Off
On
Off
On
EC00h
On
On
Off
On
On
Off
EE00h
On
On
Off
On
On
On

INTERRUPT SELECT
IRQ
S2/1
S2/2
»
IRQ2
Off
Off

IRQ3
Off
On

IRQ6
On
Off

IRQ7
On
On

SHARED RAM
Size
S2/3
S2/4
»
16KB
Off
On

8KB
Off
Off

32KB
On
Off

64KB
On
On

DATA TRANSFER RATE
Rate
S2/5
»
16Mbps
On

4Mbps
Off

I/O ADDRESS SELECT
Address
S2/6
»
A20 - A23h
Off

A24 - A27h
On

CABLE TYPE
Type
JP1
JP2
JP3
JP4
Thick Ethernet
Open
Open
Open
Open
Unshielded twisted pair
Closed
Closed
Closed
Closed
