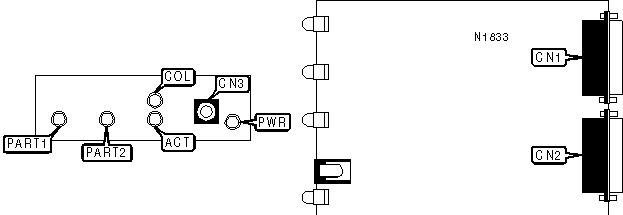

ENT-4220-55 Network Card Settings and Configuration
LANCAST
ENT-4220-55
Card Type | Ethernet repeater |
Network Transfer Rate | 10Mbps |
Data Bus | External |
Topology | Linear Bus |
Wiring Type | AUI via DB-15 connector |
CONNECTIONS | |||
Function | Label | Function | Label |
Segment 1 AUI via DB-15 connector | CN1 | DC power | CN3 |
Segment 2 AUI via DB-15 connector | CN2 | ||
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
PART1 | Yellow | On | Multiple collisions detected on segment 1 |
PART1 | Yellow | Off | Multiple collisions not detected on segment 1 |
PART2 | Yellow | On | Multiple collisions detected on segment 2 |
PART2 | Yellow | Off | Multiple collisions not detected on segment 2 |
COL | Amber | On | Collision detected |
COL | Amber | Off | Collision not detected |
ACT | Yellow | On | Repeater is transmitting or receiving |
ACT | Yellow | Off | Repeater is not transmitting or receiving |
PWR | Green | On | Power is on |
PWR | Green | Off | Power is off |
