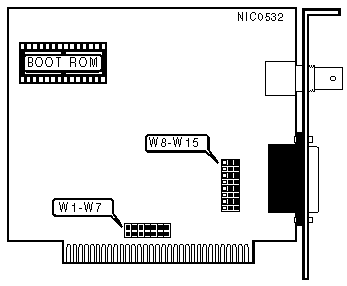

8-BIT 10BASE2 BOARD Network Card Settings and Configuration
LANCAST
8-BIT 10BASE2 BOARD
NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 8-bit ISA |
Topology | Linear bus |
Wiring Type | RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
Boot ROM | Available |
BOOT ROM | ||
Setting | W1 | |
| » | Disabled | Open |
Enabled | Closed | |
BOOT ROM & I/O BASE ADDRESS | ||||
Boot ROM Address | I/O Address | W2 | W3 | |
| » | C8000h | 300 - 31Fh | Closed | Closed |
CC000h | 320 - 33Fh | Open | Closed | |
D0000h | 340 - 35Fh | Closed | Open | |
D4000h | 360 - 37Fh | Open | Open | |
INTERRUPT REQUEST | |||||
IRQ | W4 | W5 | W6 | W7 | |
2 | Open | Open | Open | Closed | |
| » | 3 | Closed | Open | Open | Open |
4 | Open | Closed | Open | Open | |
5 | Open | Open | Closed | Open | |
CABLE TYPE | ||
Type | W8 - W15 | |
| » | RG-58A/U 50ohm coaxial | Pins 1 & 2 closed |
AUI transceiver via DB-15 port | Pins 2 & 3 closed | |
