6111-02 Network Card Settings and Configuration
LANCAST
6111-02
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | 6KB |
Boot ROM | Not available |
Network Transfer Rate | 100Mbps (200Mbps full duplex) |
Topology | Star |
Wiring Type | Fiber optic cable |
Data Bus | 32-bit PCI |

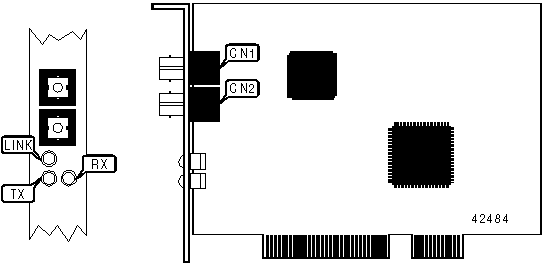

CONNECTIONS | |||
Function | Label | Function | Label |
Fiber optic ST connector - transmit | CN1 | Fiber optic ST connector - receive | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LINK | Green | On | Network connection is good |
LINK | Red | On | Network connection is broken |
RX | Yellow | Blinking | Data is being received |
RX | Yellow | Off | Data is not being received |
TX | Green | Blinking | Data is being transmitted |
TX | Green | Off | Data is not being transmitted |
Note:With both the TX & RX LED’s lit up, the card is either using full-duplex mode or there is a data collision present. | |||
