6110 PCI Network Card Settings and Configuration
LANCAST
6110 PCI
Card Type | Ethernet |
Data Bus | 32-bit PCI |
Maximum Network Rate | 10Mbps/100Mbps/200Mbps |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Boot ROM | Not available |

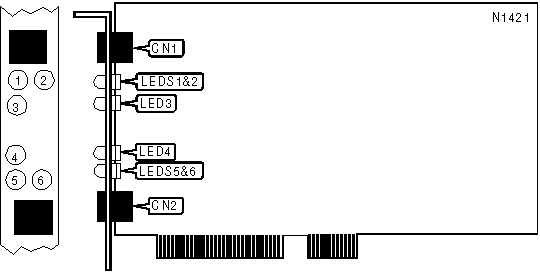

CONNECTIONS | |||
Function | Label | Function | Label |
Unshielded twisted pair (100Mbps) | CN1 | Unshielded twisted pair (10Mbps) | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Yellow | On | Data is being received on CN1 |
LED1 | Yellow | Off | Data is not being received on CN1 |
LED2 | Green | On | Data is being transmitted on CN1 |
LED2 | Green | Off | Data is not being transmitted on CN1 |
LED3 | Green | On | 100Base-TX network connection is good |
LED3 | Green | Off | 100Base-TX network connection is broken |
LED4 | Green | On | 10Base-T network connection is good |
LED4 | Green | Off | 10Base-T network connection is broken |
LED5 | Yellow | On | Data is being received on CN2 |
LED5 | Yellow | Off | Data is not being received on CN2 |
LED6 | Green | On | Data is being transmitted on CN2 |
LED6 | Green | Off | Data is not being transmitted on CN2 |
