4216-04 Network Card Settings and Configuration
LANCAST
4216-04
Card Type | Network Interface Card |
NIC Type | Ethernet |
Maximum Onboard Memory | 16KB |
Boot ROM | Available |
Network Transfer Rate | 10Mbps |
Topology | Star, linear bus |
Wiring Type | Unshielded twisted pair |
Data Bus | 16-bit EISA |

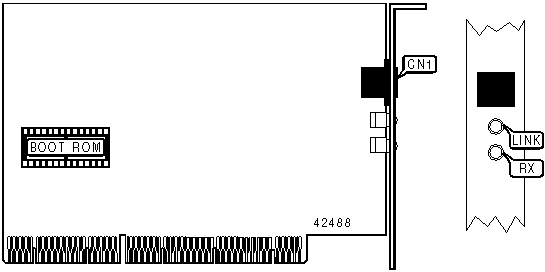

CONNECTIONS | |
Function | Label |
RJ-45 UTP connector | CN1 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LINK | Green | On | Network connection is good |
LINK | Green | Off | Network connection is broken |
RX | Green | On | Data is being transmitted/received |
RX | Green | Off | Data is not being transmitted/received |
Note:The LED labels may be reversed and/or labeled slightly different. The actual labels are located on the face plate next to the respective LED’s. | |||
