4132-00 Network Card Settings and Configuration

LANCAST

4132-00

NIC Type
Ethernet
Transfer Rate
10Mbps
Data Bus
32-bit EISA
Topology
Linear Bus
Star
Wiring Type
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Unshielded twisted pair
Boot ROM
Available

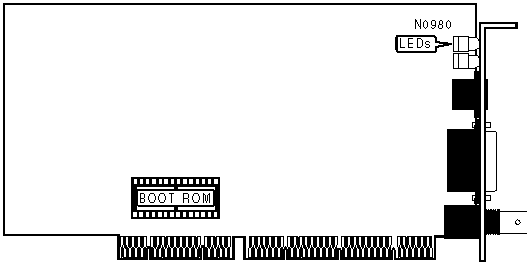

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Yellow
On
Data is being transmitted/received
LED1
Yellow
Off
Data is not being transmitted/received
LED2
Yellow
On
Collisions detected
LED2
Yellow
Off
No collisions detected
Note: Relative positions of LEDs unidentified
