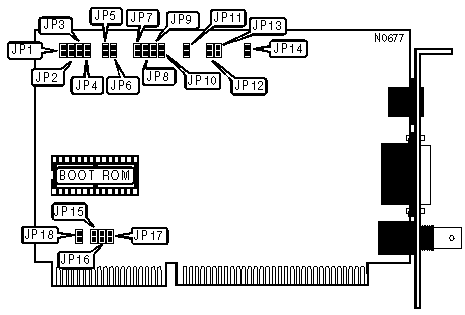

4116/4132 Network Card Settings and Configuration

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	AUI transceiver via DB-15 port Unshielded twisted pair
Boot ROM	Available

BASE MEMORY ADDRESS SELECT
Address		JP1	JP2	JP3	JP4
»	None(Boot ROM not installed)	Open	Open	Open	Open
	Boot ROM installed	Open	Open	Closed	Open
Note: Although there are fourteen possible addresses, manufacturer documentation specifies only one.

CABLE TYPE
Type	JP5	JP6
Unshielded twisted pair	Open	Open
RG58A/U 50ohm coaxial	Open	Closed
AUI transceiver via DB-15 port	Closed	Open
Shielded twisted pair	Closed	Closed

COMPATIBILITY
Setting	JP12	JP13
Channel ready generated after command strobe	Open	N/A
Channel ready generated after BALE goes high	Closed	N/A
Controller generates I/O 16-bit after I/O read/write strobe are active	N/A	Closed
Controller generates I/O 16-bit on address decode	N/A	Open

INTERRUPT SELECT
IRQ	JP7	JP8	JP9	JP10
IRQ3	Closed	Open	Open	Open
IRQ4	Closed	Open	Open	Closed
IRQ5	Closed	Open	Closed	Open
IRQ9	Closed	Open	Closed	Closed
IRQ10	Closed	Closed	Open	Open
IRQ11	Closed	Closed	Open	Closed
IRQ12	Closed	Closed	Closed	Open
IRQ15	Closed	Closed	Closed	Closed

I/O ADDRESS SELECT
Address		JP15	JP16	JP17
»	300h	Open	Open	Open
	240h	Open	Closed	Open
	280h	Open	Closed	Closed
	2C0h	Closed	Open	Open
	320h	Closed	Open	Closed
	340h	Closed	Closed	Open
	360h	Closed	Closed	Closed
	Software configured	Open	Open	Closed

EECONFIGUR OPTIONS
Setting		JP14
»	Software	Closed
	Hardware	Open

LINK TEST
Setting		JP11
»	Enabled	Open
	Disabled	Closed

SHARED MEMORY MODE
Setting		JP18
»	Enabled	Open
	Disabled	Closed
