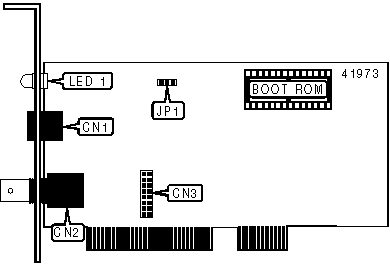

ET32/P COMBO Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Star bus
Wiring Type	Unshielded twisted pair
Data Bus	32-bit PCI

CONNECTIONS
Function	Label	Function	Label
UTP connector	CN1	AUI connector	CN3
RG-58A/U	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
AUI connector enable	JP1	Pin 2-3

DIAGNOSTIC LED(S)

Note: Function of LED 1 is unidentified.
