ET-32P BNC Network Card Settings and Configuration

Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Available
Network Transfer Rate	10Mbps
Topology	Linear bus
Wiring Type	Unshielded twisted pair
Data Bus	32-bit PCI

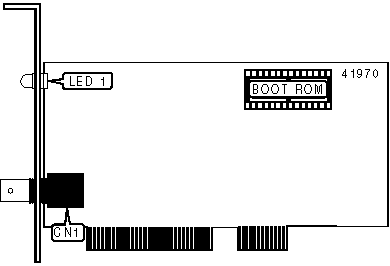

CONNECTIONS
Function	Label
RG-58A/U	CN1

DIAGNOSTIC LED(S)

Note: Function of LED 1 is unidentified.
