ETHERNET 2000A VER 3.1 Network Card Settings and Configuration
INVISIBLE SOFTWARE, INC.
ETHERNET 2000A VER 3.1

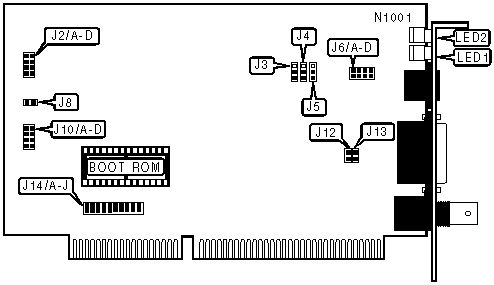

NIC Type | Ethernet |
Transfer Rate | 10Mbps |
Data Bus | 16-bit ISA |
Topology | Linear Bus/Star |
Wiring Type | Unshielded twisted pair AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial |
Boot ROM | Available |
BASE I/O ADDRESS SELECTION | |||||
Address | J2/A | J2/B | J2/C | J2/D | |
» | 300h | Closed | Closed | Closed | Closed |
200h | Open | Closed | Closed | Closed | |
220h | Open | Closed | Closed | Open | |
240h | Open | Closed | Open | Closed | |
260h | Open | Closed | Open | Open | |
280h | Open | Open | Closed | Closed | |
2A0h | Open | Open | Closed | Open | |
2C0h | Open | Open | Open | Closed | |
320h | Closed | Closed | Closed | Open | |
340h | Closed | Closed | Open | Closed | |
360h | Closed | Closed | Open | Open | |
380h | Closed | Open | Closed | Closed | |
INTERRUPT SELECTION | |||||||||||
IRQ | J14/A | J14/B | J14/C | J14/D | J14/E | J14/F | J14/G | J14/H | J14/I | J14/J | |
» | 3 | Open | Open | Open | Open | Open | Open | Open | Open | Closed | Open |
2 | Open | Open | Open | Open | Open | Open | Open | Open | Open | Closed | |
4 | Open | Open | Open | Open | Open | Open | Open | Closed | Open | Open | |
5 | Open | Open | Open | Open | Open | Open | Closed | Open | Open | Open | |
7 | Open | Open | Open | Open | Open | Closed | Open | Open | Open | Open | |
10 | Open | Open | Open | Open | Closed | Open | Open | Open | Open | Open | |
11 | Open | Open | Open | Closed | Open | Open | Open | Open | Open | Open | |
12 | Open | Open | Closed | Open | Open | Open | Open | Open | Open | Open | |
14 | Open | Closed | Open | Open | Open | Open | Open | Open | Open | Open | |
15 | Closed | Open | Open | Open | Open | Open | Open | Open | Open | Open | |
BOOT ROM CONFIGURATION | ||
Setting | J10/D | |
» | Disabled | Open |
Enabled | Closed | |
ROM ADDRESS | ||||
Address | J10/A | J10/B | J10/C | |
» | D000h | Closed | Open | Open |
C000h | Open | Open | Open | |
C400h | Open | Open | Closed | |
C800h | Open | Closed | Open | |
CC00h | Open | Closed | Closed | |
D400h | Closed | Open | Closed | |
D800h | Closed | Closed | Open | |
DC00h | Closed | Closed | Closed | |
CABLE TYPE SELECTION | ||||||
Cable Type | J6/A | J6/B | J6/C | J6/D | J12 | J13 |
BNC | Open | Open | Open | Open | Closed | Open |
AUI | Open | Open | Open | Open | Open | Closed |
UTP | Closed | Closed | Closed | Closed | Open | Open |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Yellow | On | Network connection is good |
LED1 | Yellow | Off | Network connection is broken |
LED2 | Green | Blinking | Data is being transmitted/received |
LED2 | Green | Off | Data is not being transmitted/received |
BUS COMPATABILITY | ||
Setting | J8 | |
» | Normal AT bus timing | Open |
| Alternative bus timing | Closed |
FACTORY CONFIGURED SETTINGS -DO NOT ALTER | |
Jumper | Setting |
J3 | Pins 1 & 2 closed |
J4 | Pins 1 & 2 closed |
J5 | Pins 2 & 3 closed |
MISCELLANEOUS NOTES |
Note: Bar code on back of card reads, "2000A031xxxxxxxxxxx". |
