TOKENEXPRESS ISA/8 Network Card Settings and Configuration

INTEL CORPORATION

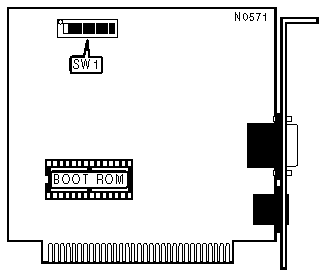

TOKENEXPRESS ISA/8

NIC Type
Token Ring
Transfer Rate
4/16Mbps
Data Bus
8-bit ISA
Topology
Ring
Wiring Type
Shielded/Unshielded Twisted Pair
Boot ROM
Available

NETWORK SEGMENT SPEED
Speed
SW1/1
»
16Mbps
On

4Mbps
Off
Note:All cards on the network segment must have this option set the same.

I/O BASE ADDRESS
Address
SW1/2
SW1/3
220 - 23Fh
Off
Off
224 - 24Fh
Off
On
250 - 26Fh
On
Off
254 - 27Fh
On
On

INTERRUPT REQUEST
IRQ
SW1/4
SW1/5
»
2
Off
Off

3
On
Off

5
Off
On

7
On
On

BOOT ROM ADDRESS
Address
SW1/6
SW1/7
SW1/8
Disabled
Off
Off
Off
C6000 - C7FFFh
On
Off
Off
CA000 - CBFFFh
Off
On
Off
CE000 - CFFFFh
On
On
Off
D2000 - D3FFFh
Off
Off
On
D6000 - D7FFFh
On
Off
On
DA000 - DBFFFh
Off
On
On
DE000 - DFFFFh
On
On
On
