ETHEREXPRESS PRO/100 SERVER ADAPTER Network Card Settings and Configuration
INTEL CORPORATION
ETHEREXPRESS PRO/100 SERVER ADAPTER
Card Type | Network Interface Card |
NIC Type | Ethernet |
Network Transfer Rate | 100Mbps/10Mbps |
Topology | Star |
Wiring Type | RJ-45 Shielded twisted pair RJ-45 Unshielded twisted pair Fiber optic via MII transceiver |
Data Bus | 32-bit PCI |

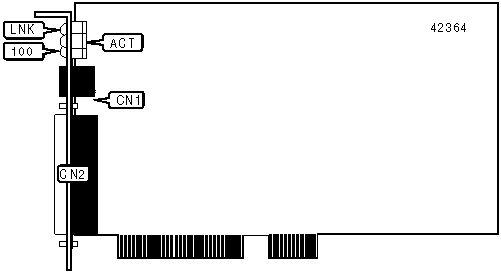

CONNECTIONS | |||
Function | Label | ||
RJ-45 UTP/STP connector | CN1 | MII connector | CN2 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LNK | Unidentified | On | Network connection is good |
LNK | Unidentified | Off | Network connection is broken |
ACT | Unidentified | Blinking | Data is being transmitted/received |
ACT | Unidentified | Off | Data is not being transmitted/received |
100 | Unidentified | On | Network is operating at 100 Mbps |
100 | Unidentified | Off | Network is operating at 10 Mbps |
MISCELLANEOUS TECHNICAL NOTES |
LED and port placement may vary due to board revisions. |
