ETHEREXPRESS PRO/100+ SERVER ADAPTER (PILA8470) Network Card Settings and Configuration







INTEL CORPORATION

ETHEREXPRESS PRO/100+ SERVER ADAPTER (PILA8470)

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

6KB cache

Boot ROM

Not available

Network Transfer Rate

100Mbps/10Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Data Bus

32-bit PCI

CONNECTIONS

Function

Label

RJ-45 UTP connector

CN1

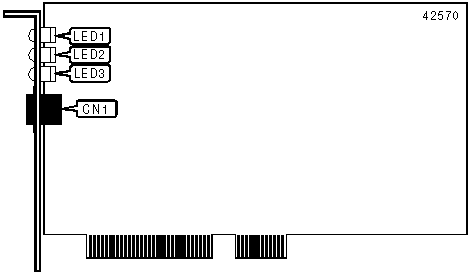

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

Network connection is good

LED1

Unidentified

Off

Network connection is not good

LED2

Unidentified

Blinking

Data is being received

LED2

Unidentified

Off

Data is not being received

LED3

Unidentified

On

Operating at 100 Mbps

LED3

Unidentified

Off

Operating at 10 Mbps
