ETHEREXPRESS PRO/10 Network Card Settings and Configuration
INTEL CORPORATION
ETHEREXPRESS PRO/10
Card Type | Network Interface Card |
NIC Type | Ethernet |
Boot ROM | Available |
Network Transfer Rate | 10Mbps |
Topology | Star |
Wiring Type | Unshielded twisted pair |
Data Bus | 16-bit ISA |

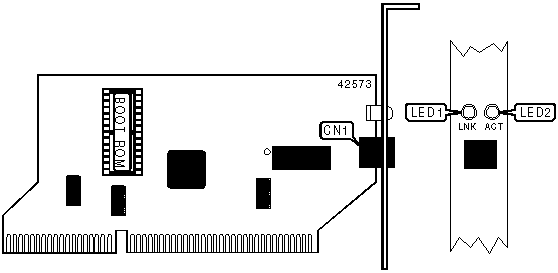

CONNECTIONS | |
Function | Label |
RJ-45 UTP connector | CN1 |
DIAGNOSTIC LED(S) | |||
LED | Color | Status | Condition |
LED1 | Green | On | Network connection is good |
LED1 | Green | Off | Network connection is not good |
LED2 | Green | Blinking | Data is being received |
LED2 | Green | Off | Data is not being received |
