ETHEREXPRESS PRO 10+ ISA (VER. 2) Network Card Settings and Configuration







INTEL CORPORATION

ETHEREXPRESS PRO 10+ ISA (VER. 2)

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

32KB

Boot ROM

Not available

Network Transfer Rate

10/20Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Data Bus

8/16-bit ISA

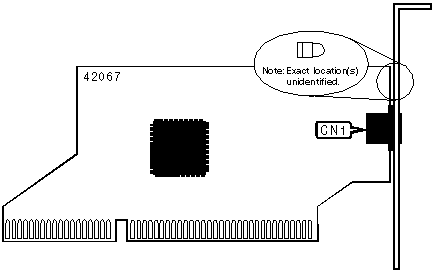

CONNECTIONS

Function

Label

RJ-45 Unshielded twisted pair connector

CN1

DIAGNOSTIC LED(S)

Note: Function of LED(s) is unidentified.
