PCI-NET/32 COMBO Network Card Settings and Configuration







GLOBAL DATA SUPPLY

PCI-NET/32 COMBO

Device Type

Transceiver

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Available

Network Transfer Rate

10Mbps (20Mbps full duplex)

Topology

Star, linear bus

Wiring Type

RJ-45 Unshielded twisted pair

RG-58 A/U 50ohm coaxial

AUI transceiver via DB-15 port

Data Bus

32-bit PCI

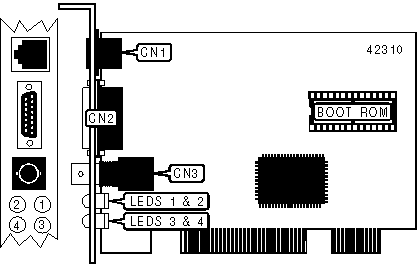

CONNECTIONS

Function

Label

Function

Label

RJ-45 UTP connector

CN1

RG-58 A/U 50ohm coaxial

CN3

AUI transceiver via DB-15

CN2



DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

Blinking

Data is being received

LED1

Unidentified

Off

Data is not being received

LED2

Unidentified

Blinking

Collision detected on network

LED2

Unidentified

Off

No collision detected on network

LED3

Unidentified

Blinking

Data is being transmitted

LED3

Unidentified

Off

Data is not being transmitted

LED4

Unidentified

Blinking

UTP link is good

LED4

Unidentified

Off

UTP link is broken
