MAC TRANSCEIVER-C Network Card Settings and Configuration

Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Linear bus
Wiring Type	RG-58 A/U 50ohm coaxial AUI transceiver via DB-15 port
Data Bus	External

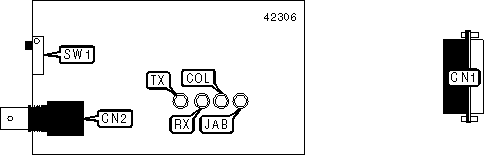

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	RG-58 A/U 50ohm coaxial	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SQE test function disabled	SW1	Off
	SQE test function enabled	SW1	On

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TX	Unidentified	Blinking	Data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
RX	Unidentified	Blinking	Data is being received
RX	Unidentified	Off	Data is not being received
COL	Unidentified	Blinking	Collision detected on network
COL	Unidentified	Off	No collision detected on network
JAB	Unidentified	On	Error detected on network
JAB	Unidentified	Off	Network functioning normally
