MAGNUM 110 Network Card Settings and Configuration

Card Type	Ethernet Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Linear Bus
Wiring Type	AUI transceiver via DB-15 port, RG-58A/U 50ohm coaxial
Data Bus	External

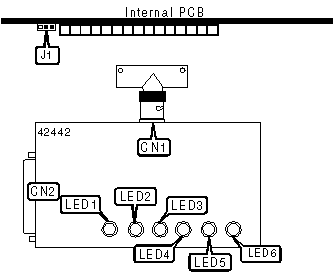

CONNECTIONS
Function	Label	Function	Label
BNC-T network tap connector	CN1	AUI connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
	SQE on with LED indication	J1	Pins 1 & 2 closed
	SQE on without LED indication	J1	Open
»	SQE off	J1	Pins 2 & 3 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Collision detected on network
LED1	Yellow	Off	Collision not detected on network
LED2	Amber	On	Jabber has occurred
LED2	Amber	Off	Jabber has not occurred
LED3	Green	On	Power is on
LED3	Green	Off	Power is off
LED4	Green	On	Data is being transmitted
LED4	Green	Off	Data is not being transmitted
LED5	Yellow	On	SQE enabled
LED5	Yellow	Off	SQE disabled
LED6	Green	On	Data is being received
LED6	Green	Off	Data is not being received
