ETHERLAN LC, ETHERLAN LC/FPU Network Card Settings and Configuration







FOCUS ENHANCEMENTS, INC.

ETHERLAN LC, ETHERLAN LC/FPU

NIC Type

Ethernet

Chip Set

National Semiconductor DP83901

Maximum Onboard Memory

64KB SRAM

NPU Options

Motorola 68882

Network Transfer Rate

10Mbps

Data Bus

LC PDS

Topology

Linear Bus

Wiring Type

RG-58A/U 50ohm coaxial

Boot ROM

Not available

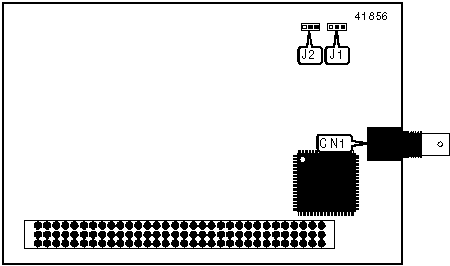

CONNECTIONS

Function

Label

RG-58A/U 50ohm coaxial connector

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

J1

Pins 2 & 3 closed

»

Factory configured - do not alter

J2

Pins 2 & 3 closed

SRAM CONFIGURATION

The EtherLAN LC can have 16KB or 64KB of SRAM. The location and configuration of this memory is unidentified.
