ETHERLAN IIT Network Card Settings and Configuration
FOCUS ENHANCEMENTS, INC.
ETHERLAN IIT
NIC Type | Ethernet |
Chip Set | National Semiconductor DP83902 |
Maximum Onboard Memory | 64KB SRAM |
Network Transfer Rate | 10Mbps |
Data Bus | NuBus |
Topology | Linear Bus/Star |
Wiring Type | Unshielded twisted pair AUI transceiver via DB-15 port |
Boot ROM | Not available |

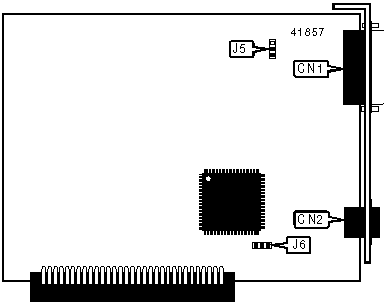

CONNECTIONS | |||
Function | Label | Function | Label |
AUI transceiver via DB-15 port | CN1 | Unshielded twisted pair connector | CN2 |
USER CONFIGURABLE SETTINGS | |||
Setting | Label | Position | |
| » | Link function enabled | J6 | Pins 1 & 2 closed |
Link function disabled | J6 | Pins 2 & 3 closed | |
CABLE TYPE SELECTION | |
Setting | J5 |
Unshielded twisted pair | Pins 1 & 2 closed |
AUI transceiver via DB-15 port | Open |
SRAM CONFIGURATION |
The EtherLAN IIT can have 16KB or 64KB of SRAM. The location and configuration of this memory is unidentified. |
